4-20mA Digital Differential Pressure Transducer

Name: 420mA Digital Differential Pressure Transducer
Brand: Keram Controls
Price: 55 USD

Quality 4-20mA Digital Differential Pressure Transducer wholesale

Brand Name : Keram Controls

Model Number : KDP210

Certification : CE

Place of Origin : China

MOQ : 10 pcs

Price : USD55-70/piece EXW factory

Payment Terms : T/T, Western Union

Supply Ability : 2000 pcs per month

Delivery Time : 5-10 working days

Packaging Details : Carton

Name : Air Differential Pressure Transmitter

Warranty : 1 year

Customized support : OEM

Protection : IP65

Accuracy : 1.0% FS

Pressure range : 0~100...1,000Pa...10,000Pa

Power supply : 16-30Vac/dc

Output signal : 4-20mA, 0-10V, 0-5V, RS485

Operation temperature : -20~+80℃

Meida : Air and neutral gases

Material : ABC+PC

Contact Now

KDP210 Series Differential pressure transmitter

Industry Automation DPT Differential Pressure Transmitter 4-20mA Output

The KDP210 differential pressure transmitter has high accuracy, ultra-low & adjustable range, fast response characteristics, widely used in clean electronics and pharmaceutical factories, as well as large commercial buildings, medical centers and transportation hub.

KDP210 transmitters are engineered for building automation in the HVAC/R industry. The most technologically advanced transmitters on the market measuring static and differential pressure, with field selectable units, range and output, all in a single device.

Features

Range from ±100Pa ~ ±10000Pa (according to models)
Manual zero
Input voltage:16~30Vac/Vdc
0-10, 0-5V, 4-20mA, RS485 signal output
LCD backlight display
Standard accuracy < 1% FS
IP house protection

Applications

HVAC& Building automation
Clean room
Furnace ventilation
Public transport hub
Air handling unit

Specifictions

Model	KDP210
Measurement units	Pa, mmH₂O, inHG, KPa, mbar
Accuracy	<1% FS
Response time	0.1s, 0.5s, 1s, 2s
Repeatbality	±0.01% FS / year
Resolution	1 Pa, 1 mmH₂O, 0.04inHG, 0.01KPa, 0.01mbar
Media	AIr and neutral gases
Operating temp	-20 to 80℃
Stroage temp	-40 to 80℃
Power consumption	<3W
Tolerated overpressure	x 15 FS
Power supply	16-30VAC/DC
Housing material	Polycarbonate & ABS, UL94V-0
Protection	IP65
Display	LCD backlight
Cable gland	M16*1.5

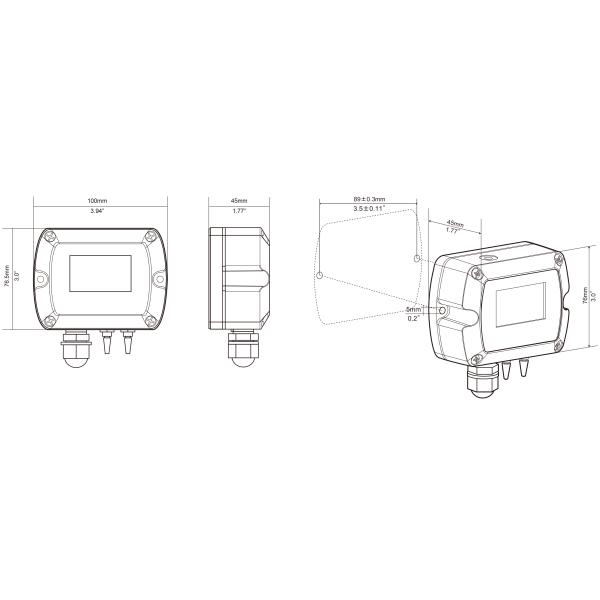

Dimensions

4-20mA Digital Differential Pressure Transducer

Ordering guide

4-20mA Digital Differential Pressure Transducer
